| Quantity: | |
|---|---|
Raw material
Parameter
Model | Power(kw） | Evaporation（t/h） | Gradient | Thickness(mm) |
YGHG1.2*12 | 5.5+15+2.2+1.5 | 0.3-0.6 | 2-3° | 10mm |
YGHG1.5*12 | 11+18.5+3+2.2 | 0.47-0.91 | 2-3° | 12mm |
YGHG1.8*18 | 18.5+37+3+2.2 | 1.01-1.90 | 2-3° | 12mm |
YGHG2.0*18 | 18.5+55+5.5+2.2 | 1.25-2.3 | 2-3° | 14mm |
YGHG2.2*24 | 22+90+5.5+2.2 | 2.02-3.36 | 2-3° | 14mm |
YGHG2.5*24 | 22+90+5.5+3 | 2.61-4.16 | 2-3° | 14mm |
YGHG3.0*24 | 30+132+5.5+3 | 3.76-5.6 | 2-3° | 16mm |
Key points

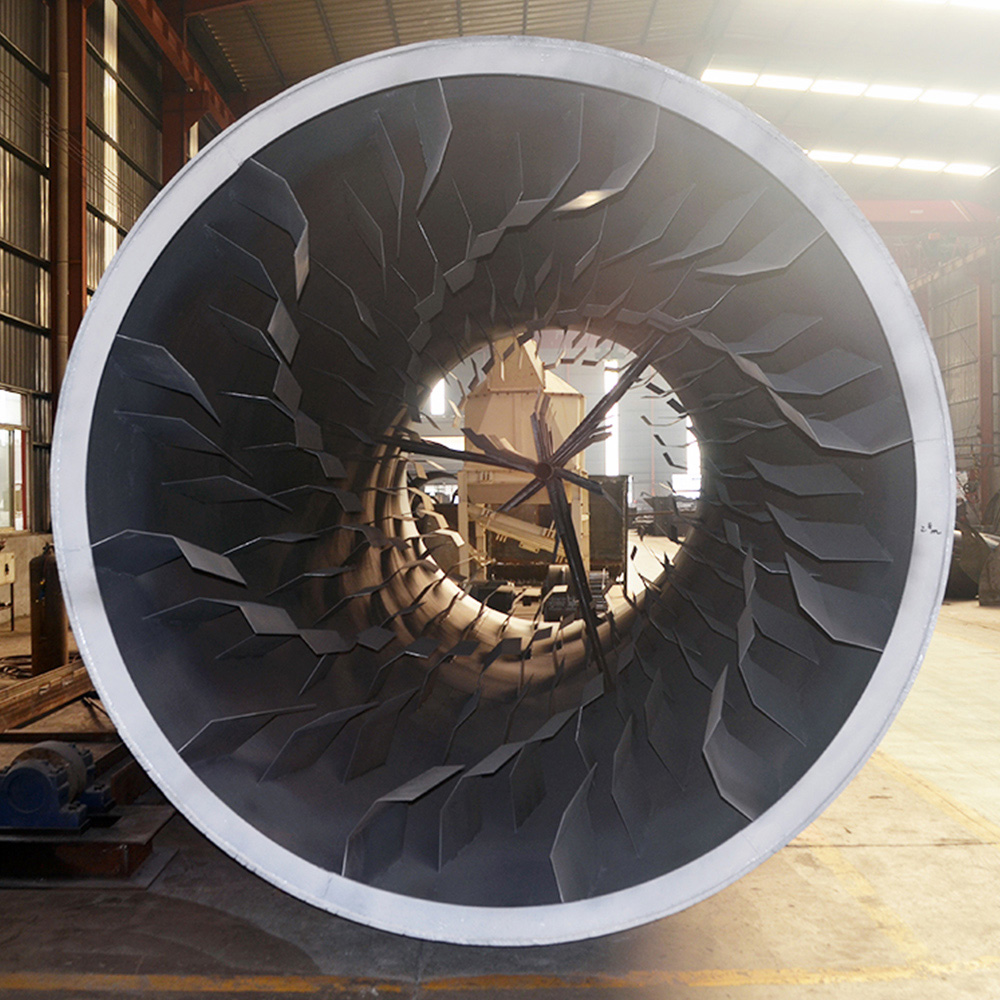

1. The design of the lifting plate in the cylinder is Multi-angle,so that the material forms a curtain in the cylinder.
2. The material and hot air contact surface is high, the thermal efficiency is high, and the drying effect is good.
3. The structure design is reasonable, which is conducive to maintenance
4. The material has a wide range of applications, can be used for the drying of powder, wood chips, silk materials, etc.
Export case
Exhibition pictures
Certification
Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.
Service/policy/warranty or after-sales service
Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction
