Details:
The comprehensive crusher is composed of a machine base, knife rotor, upper and lower feeding mechanisms, feeding devices, and hydraulic buffering systems. It is mainly used for crushing and crushing materials such as wood log, construction templates, demolition materials, and templates.
The wood crusher mainly relies on impact energy to complete the task of crushing wood. The hammer type comprehensive crusher, when in operation, the motor drives the rotor to rotate at high speed, and the wood uniformly enters the chamber of the comprehensive crusher. The high-speed rotating hammer head impacts, cuts and tears the wood, causing it to be broken. At the same time, the gravity of the wood itself causes the wood to rush from the high-speed rotating hammer head to the baffle and sieve bar inside the frame. A sieve plate is installed at the lower part of the rotor, and the particles smaller than the sieve hole size in the crushed wood are discharged through the sieve plate. The wood larger than the sieve hole size is retained on the sieve plate and continues to be hit and ground by the hammer. It is mainly used for breaking round wood, small diameter wood, branches, branches, boards, Flat noodles, bamboo and other materials
1. Feeding chain plate: all models adopt feeding chain plate, chain plate is Q345 steel plate.
2. The main machine includes: main machine box, upper and lower feeding structure, spindle cutter roller, motor, etc.
3. Wearing parts: flying blade, fixed blade, bearing, triangle belt,etc.
4. The blade material is H13 steel .The hammer head is made of high manganese steel Mn13Cr2 or Mn13, and the surface is surfacing with YG8 carbide particles.
Raw material:
Details:
Model | Power(kw) | Feed port size(cm) | After chipping size(mm) | Capacity(t/h) | Weight(t) |
YMPJ1300-300 | 110+4+5.5+3+1.5 | 1300*300 | 30-110 | 6-10 | 8.5 |
YMPJ1300-600 | 160+7.5+7.5+3+3 | 1300*600 | 30-110 | 12-15 | 11.5 |
YMPJ1400 | 220+7.5+7.5++3+3 | 1400*600 | 30-110 | 15-20 | 14 |
YMPJ1650 | 220+11+7.5+3+4 | 1650*600 | 30-110 | 18-25 | 16 |
YMPJ2113 | 315+11+11+3 | 1100*530 | 30-110 | 15-25 | 20 |
YMPJ2116 | 450+18.5*2+4+5.5 | 1250*700 | 30-110 | 40-60 | 45 |

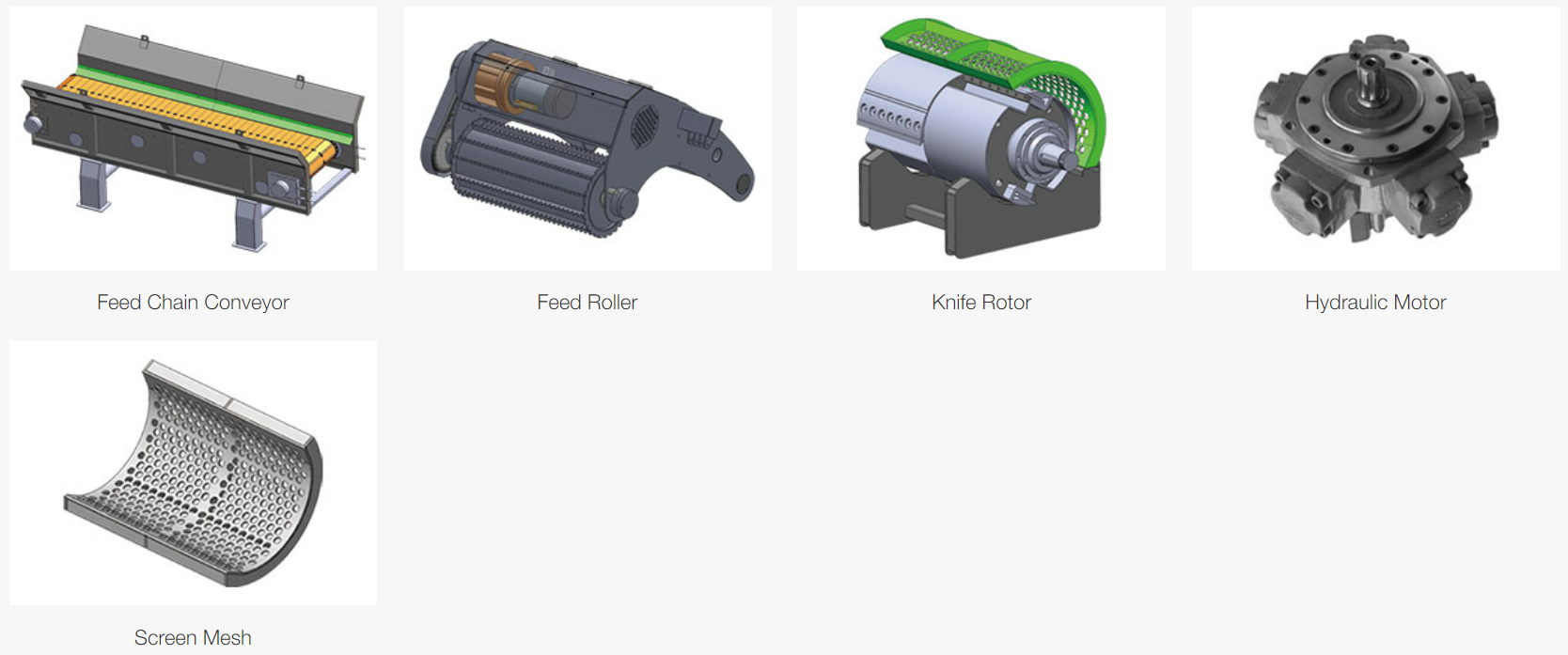

Accessories introduction:
Certification:
Our company has gained ISO9001-2000 Certification,CE Certification,SGS Certification patent etc.Products cover the environmental carbon, biomass,urban and rural environment,culture and other fields.There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural ,organic fertilizer equipment, Feeder Equipment and Environmental protection equipment .
